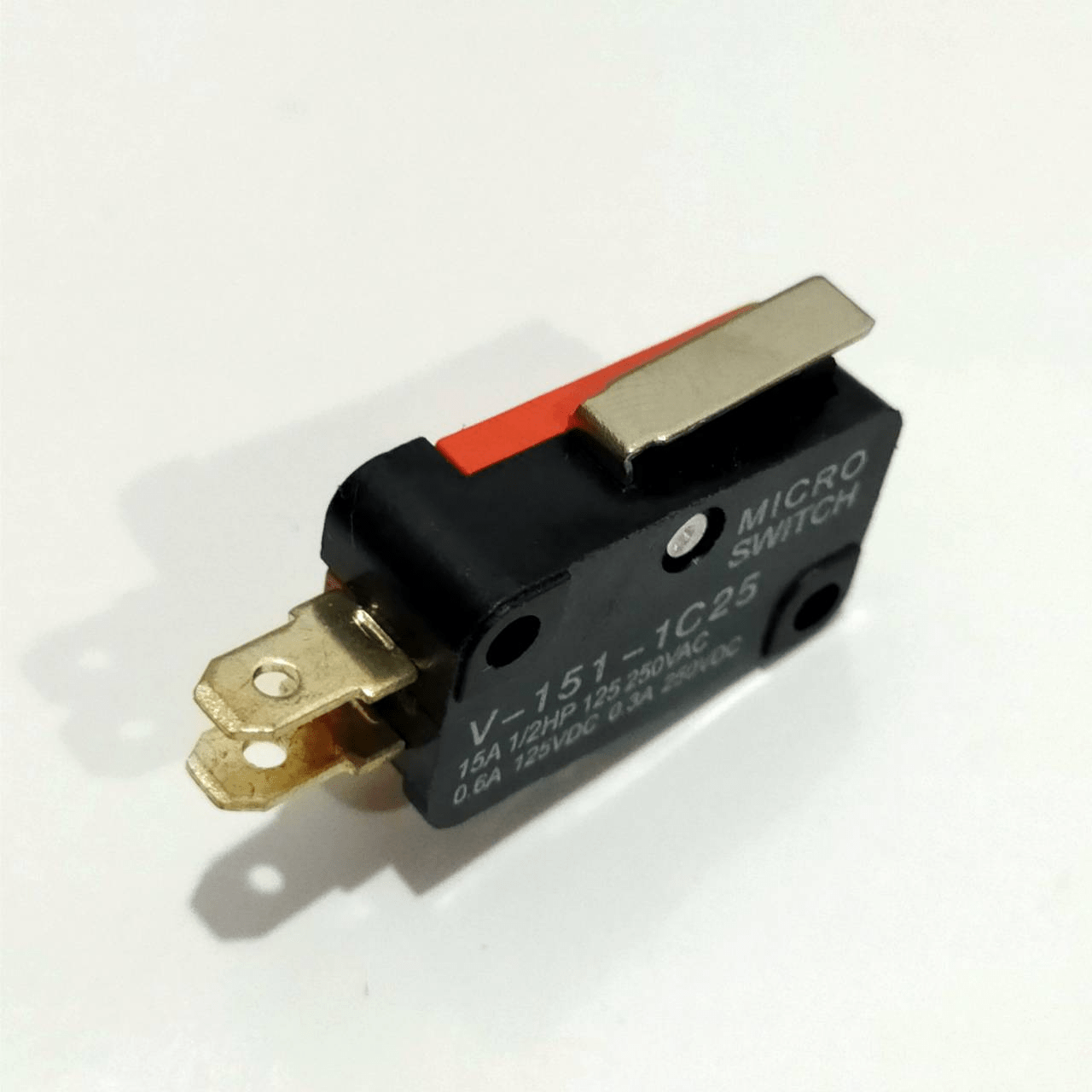

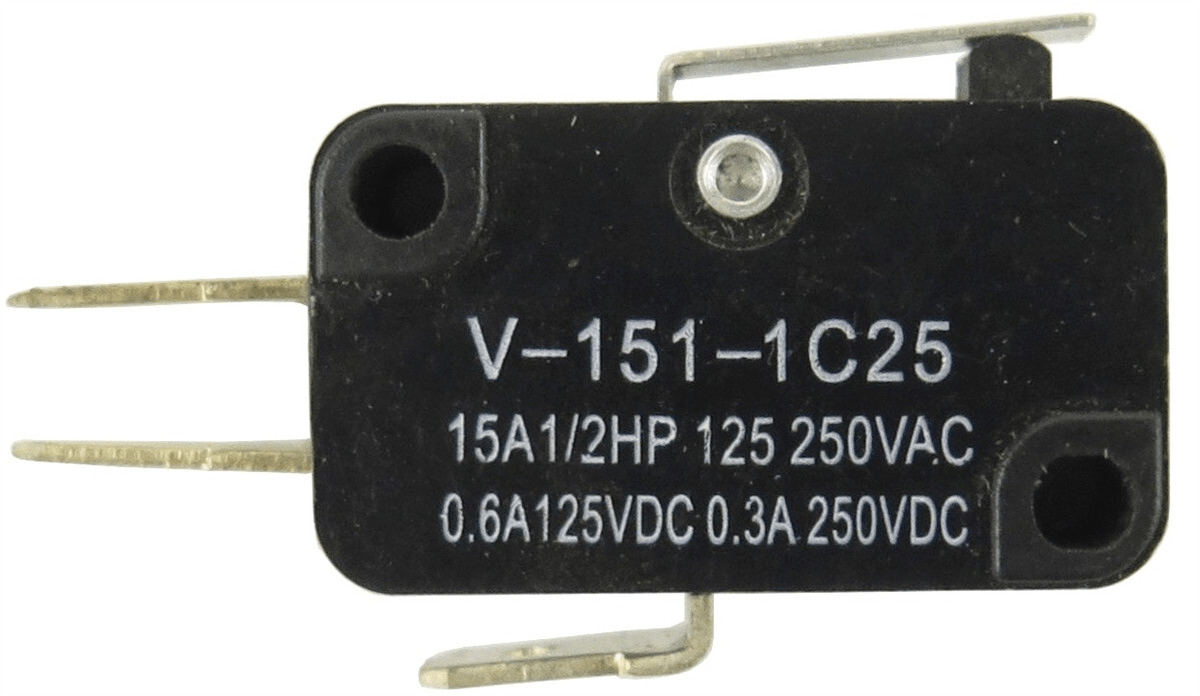

V-151-1C25 Micro Switch – High-Current Snap-Action Switch (16A / 250V)

Product Description

V-151-1C25 Micro Switch – High-Current Snap-Action Switch (16A / 250V)

The V-151-1C25 Micro Switch is a robust, high-current snap-action switch designed for precise and reliable switching in demanding electrical applications. Engineered for long life and consistent performance, it features an SPDT contact configuration and is widely used in industrial control systems, appliances, power tools, and automotive devices.

Key Features:

• High Current Rating – Supports up to 16A at 250V AC, ideal for heavy-duty applications.

• Snap-Action Mechanism – Provides fast, reliable contact switching with minimal actuation effort.

• SPDT Configuration – Single Pole Double Throw design allows for versatile wiring options (NO + NC contacts).

• Durable Build – Rugged housing and quality materials ensure extended operational life.

• Universal Mounting – Easy to integrate with standard screw or PCB mounting setups.

Specifications:

• Model: V-151-1C25

• Contact Type: SPDT (NO + NC)

• Rated Voltage/Current: 16A @ 250V AC / 0.6A @ 125V DC

• Operating Force: Approx. 150gf

• Terminals: 3-pin quick connect / solder type

• Operating Temp: -25°C to +125°C

• Mechanical Life: ≥ 1,000,000 cycles

• Compliance: RoHS, UL, CE certified

Applications:
Ideal for HVAC systems, vending machines, microwaves, 3D printers, safety interlocks, control panels, and more.
