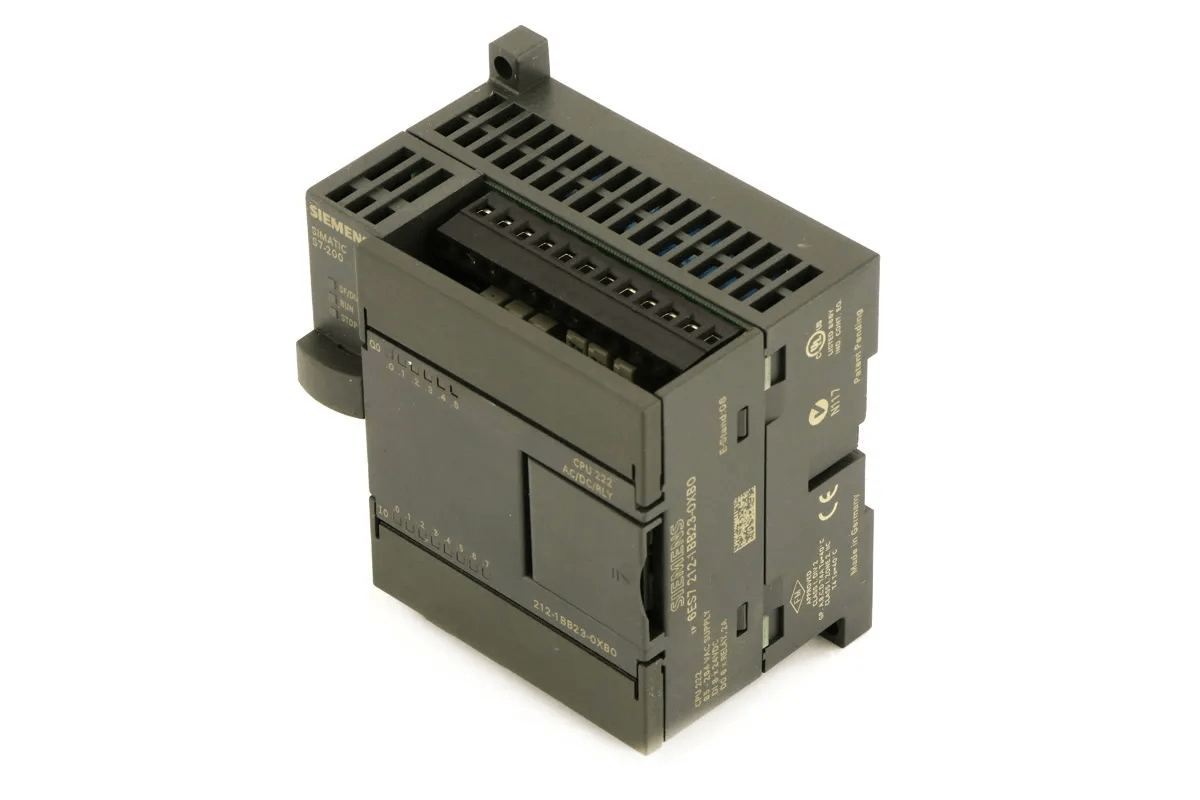

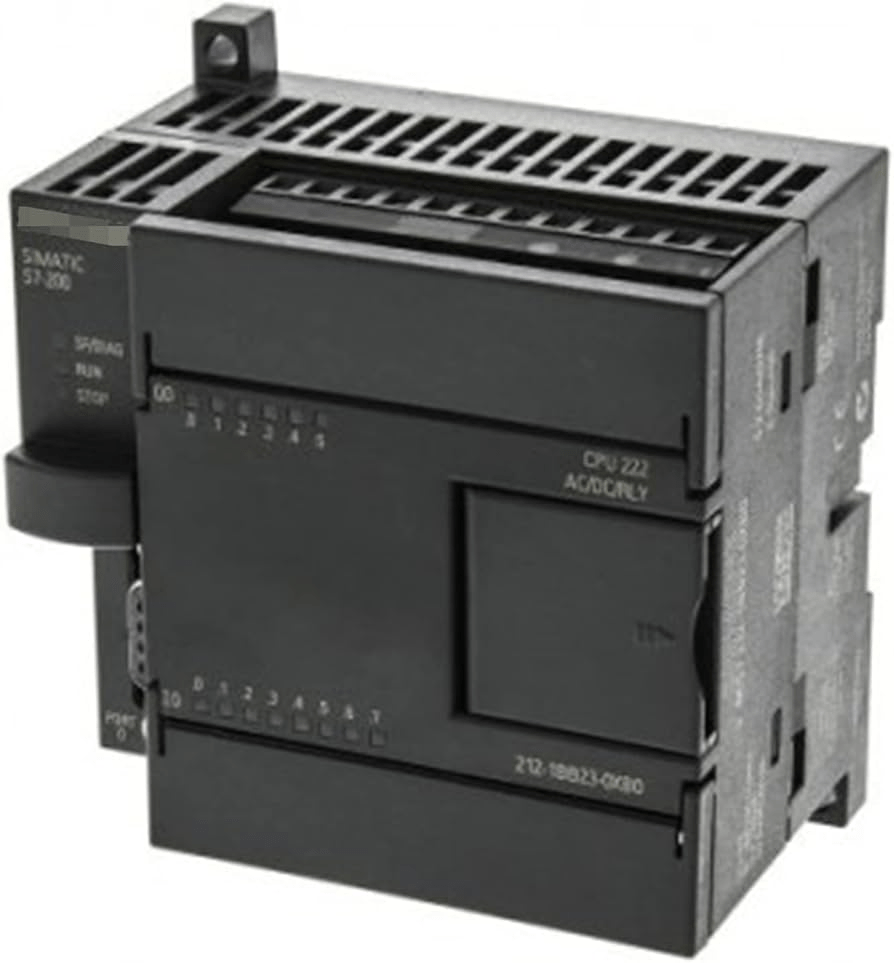

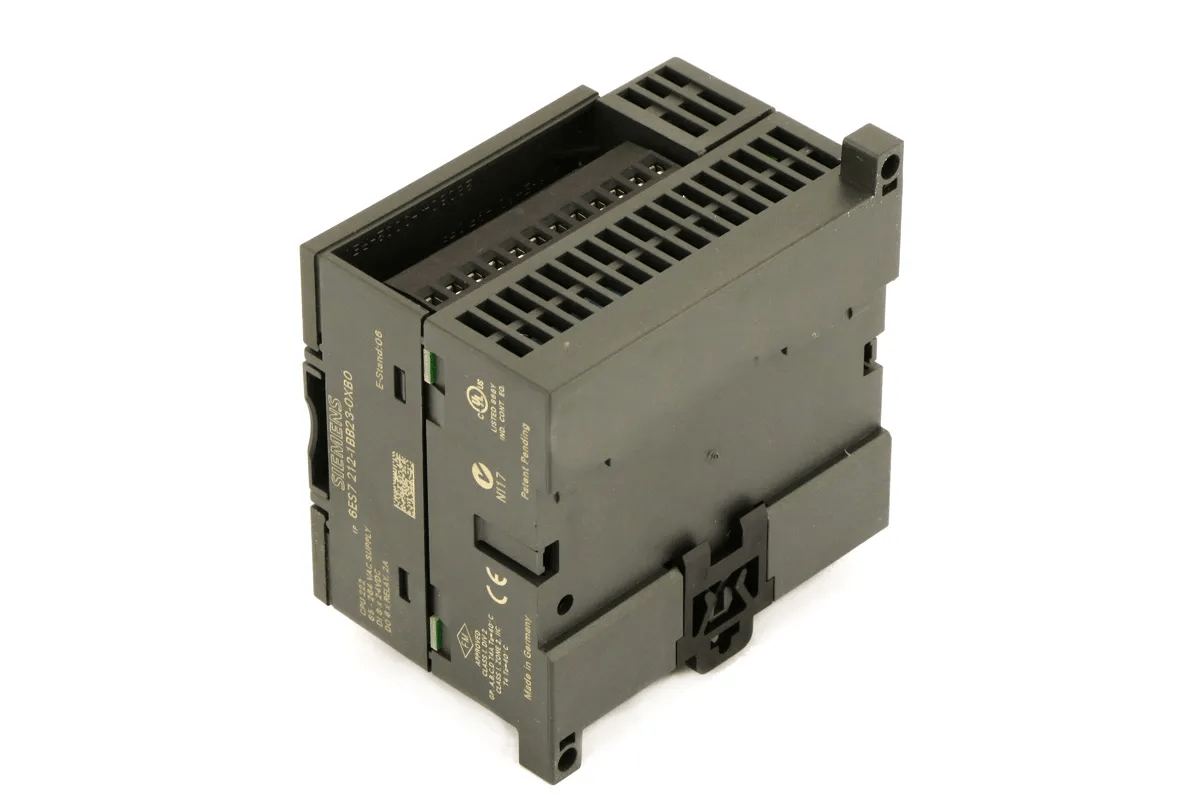

SIEMENS SIMATIC S7-200, CPU 222 , 6ES7 212-1BB23-0XB0,CPU Module with an integrated power supply

Product Description

SIMATIC S7-200, CPU 222 , ,CPU Module with an integrated power supply(6ES7 212-1BB23-0XB0)

            The Siemens 6ES7 212-1BB23-0XB0 is a SIMATIC S7-200 CPU 222 compact programmable logic controller (PLC) designed for small to medium-sized automation tasks. Although discontinued since October 1, 2017, it remains a reliable component in legacy systems and is still available as a spare part through various suppliers.

Key Features:

• Model: SIMATIC S7-200 CPU 222

• Part Number: 6ES7 212-1BB23-0XB0

• Power Supply: AC (120–230 V)

• Inputs/Outputs: 8 Digital Inputs (24 V DC) / 6 Relay Outputs

• Memory:

  • Program Memory: 4 KB

  • Data Memory: 2 KB

• Communication Interface: RS485 with PPI protocol

• Expandable: Yes, supports PROFIBUS DP and additional I/O modules

Technical Specifications

• Dimensions: Approximately 80 x 90 x 62 mm

• Weight: ~0.287 kg

• Operating Temperature: 0°C to +40°C

• Programming Languages: Ladder Logic (LAD), Function Block Diagram (FBD), Statement List (STL)

• Programming Software: STEP 7-Micro/WIN

• Communication Ports: 1 x RS485

• Battery Backup: Yes

• Mounting: DIN rail

Connectivity & Expansion

• Communication: Built-in RS485 port for PPI protocol; expandable via communication modules for PROFIBUS DP, AS-Interface, and Ethernet

• I/O Expansion: Supports digital and analog expansion modules, temperature modules, positioning modules, and more

• HMI Compatibility: Compatible with Siemens HMIs like TD 100, TD 200, TD 400, OP 73, and TP 177

Compliance & Lifecycle

• Product Status: Discontinued since October 1, 2017; available as a spare part

• RoHS Compliance: Yes, since March 31, 2008

• REACH Information: Contains substances like lead and lead monoxide above 0.1% w/w; considered safe under normal use

• Country of Origin: China
