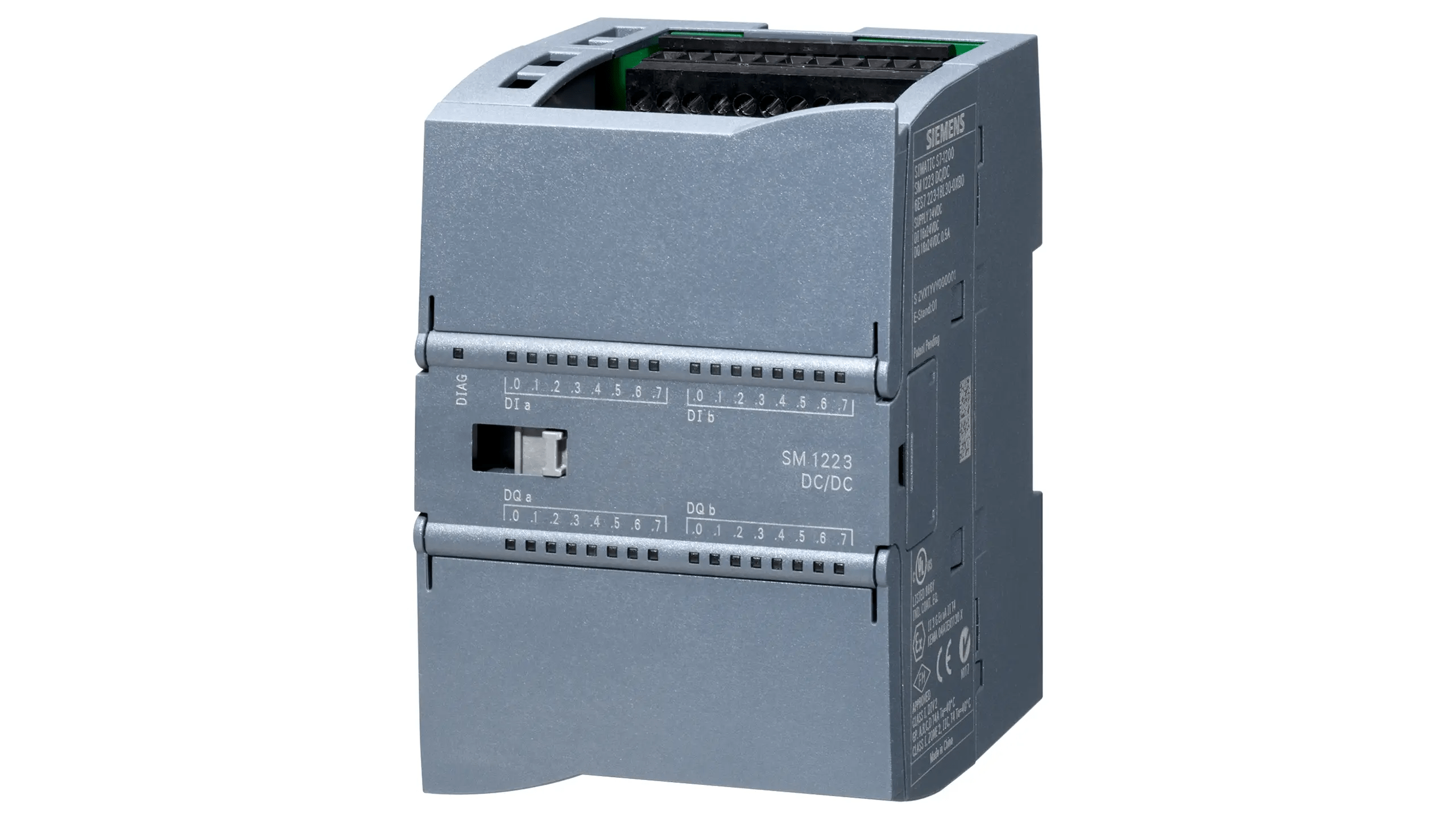

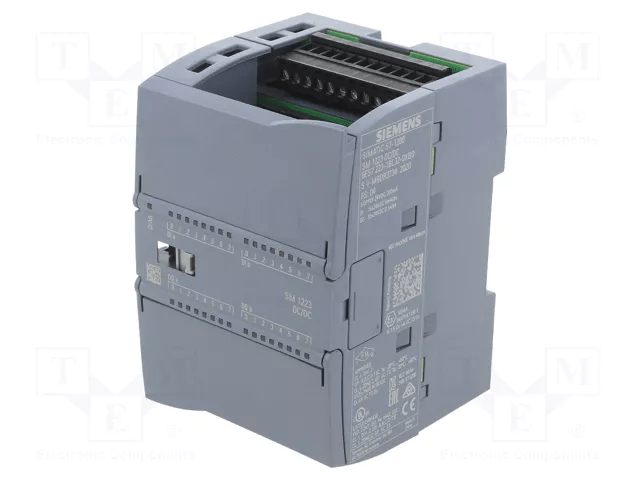

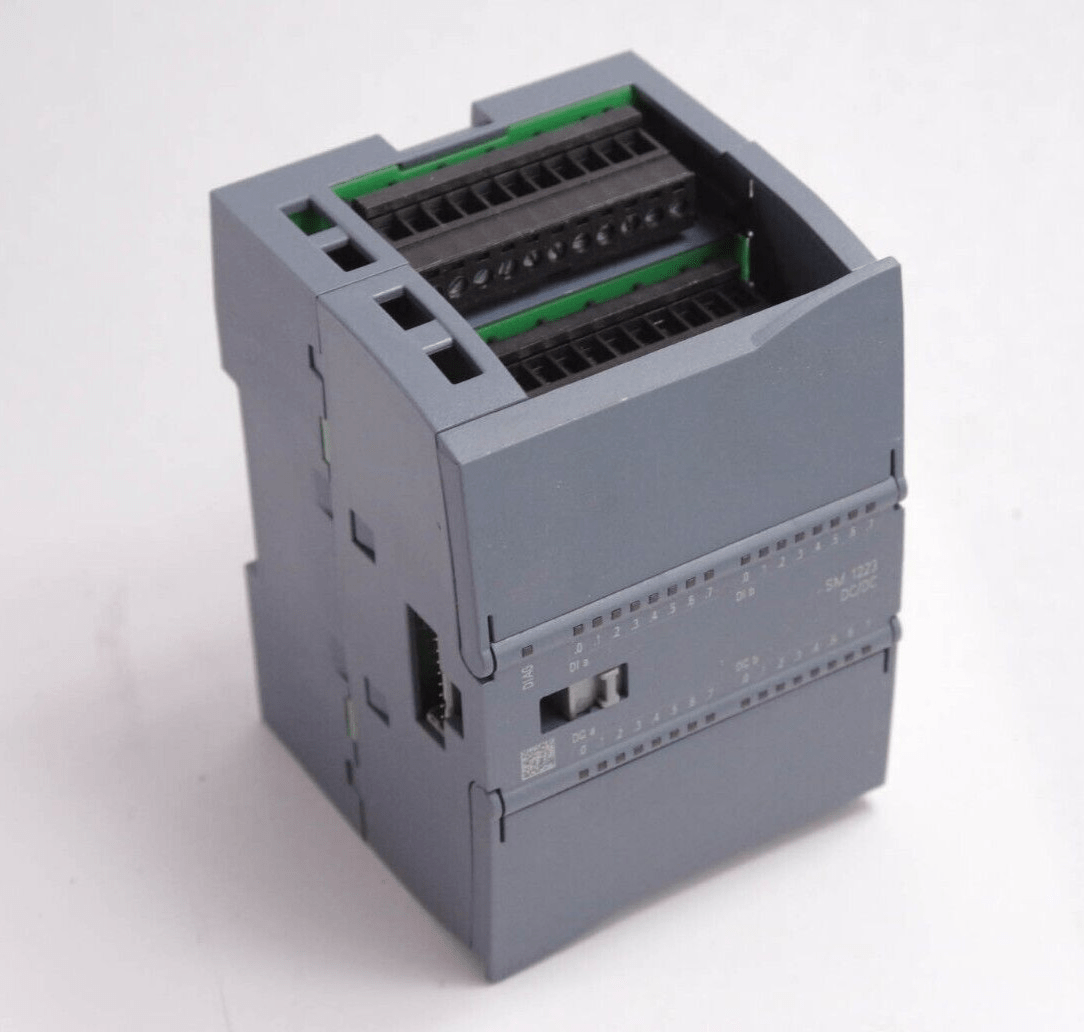

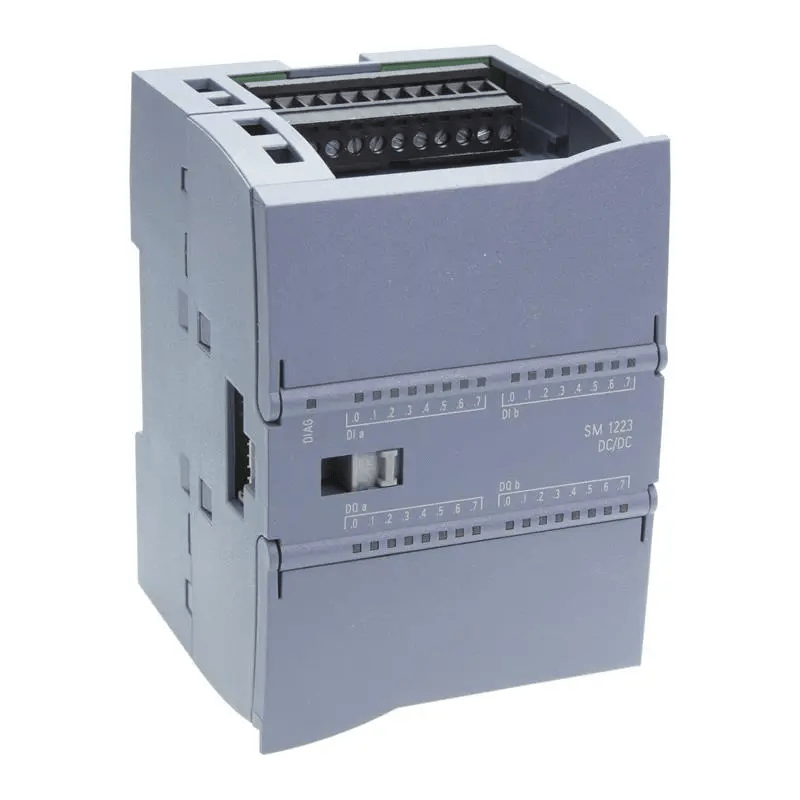

Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module (6ES7223-1BL32-0XB0)

Product Description

              The 6ES7223-1BL32-0XB0 is a SIMATIC S7-1200 SM 1223 digital I/O expansion module designed for the SIMATIC S7-1200 automation system. This versatile module provides both digital input and output channels, making it ideal for applications requiring compact and efficient signal integration in industrial control systems.

Key Specifications

Key Features:

• Digital Inputs:

  • 16 digital inputs (24 V DC, sink/source)

  • Input type: IEC Type 1 compliant

  • Input delay: 3–12 ms (configurable)

• Digital Outputs:

  • 16 digital outputs (24 V DC, 0.5 A)

  • Transistor outputs (source type)

  • Short-circuit protection included

• Power Supply: 24 V DC

• Module Type: SM 1223 Digital I/O

• Dimensions (W x H x D): 70 mm x 100 mm x 75 mm (approx.)

• Mounting: DIN rail mounting

• Part Number: 6ES7223-1BL32-0XB0

• Applications: Ideal for industrial automation tasks where a mix of digital inputs and outputs is required, such as machine control, process monitoring, and distributed control systems.

Benefits:

• Compact design for space-saving installations

• High channel density for flexible signal acquisition

• Easy integration with SIMATIC S7-1200 CPUs

The SM 1223 (6ES7223-1BL32-0XB0) module is a reliable and cost-effective solution for expanding the digital I/O capabilities of your SIMATIC S7-1200 system.
