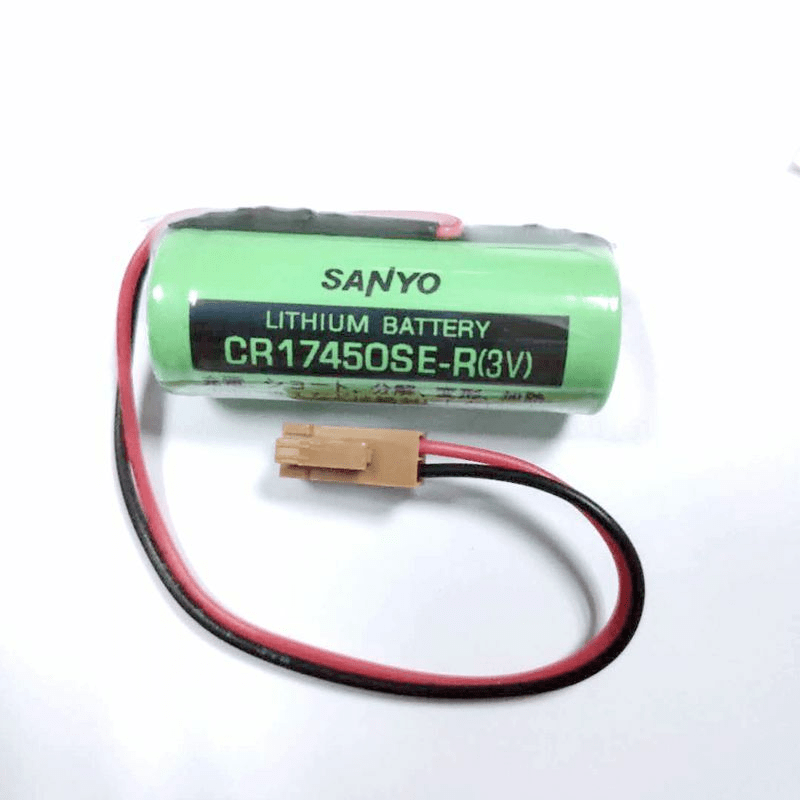

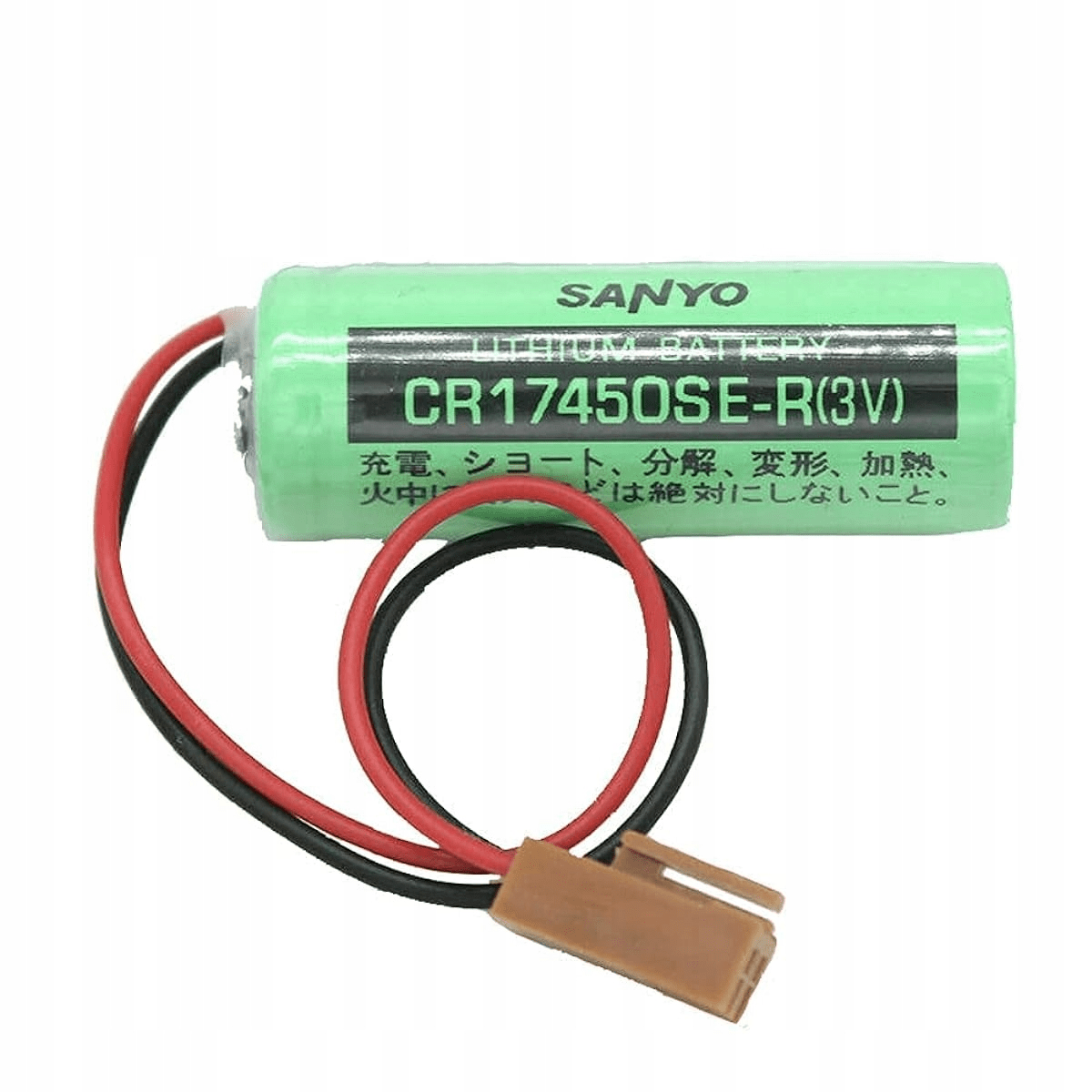

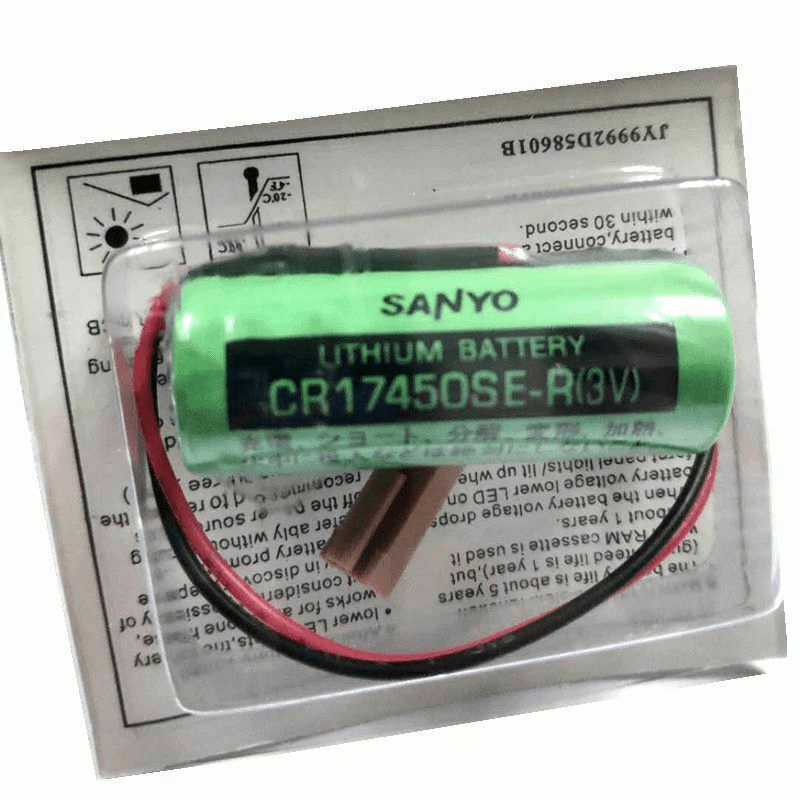

SANYO, Lithium 3V Battery , CR17450SE_R

Parameters:

Type: Primary Lithium (Li-MnO₂) battery
Nominal Voltage: 3V
Capacity: ~2.4 Ah
Size: Ø17.0 × 45.0 mm (Cylindrical)
Weight: ~21 g
Operating Temp.: -40°C to +85°C
Shelf Life: 10+ years
Terminal Style: Radial tabs (R type)

Product Description

CR17450SE-R Lithium Battery – High Reliability for Industrial Applications

The CR17450SE-R is a Lithium Manganese Dioxide (Li-MnO₂) cylindrical battery developed for high-reliability and long-life applications. It is a non-rechargeable primary lithium cell widely used in industrial electronics, metering systems, memory backup, and other applications requiring stable voltage and long service life.

Key Features:

Battery Type: Primary Lithium (Li-MnO₂)
Model: CR17450SE-R
Cell Shape: Cylindrical
Nominal Voltage: 3V
Nominal Capacity: ~2.4 Ah (at 2 mA discharge, to 2.0 V at +20°C)
Diameter: ~17.0 mm
Length: ~45.0 mm
Weight: Approx. 21 g
Operating Temperature Range: -40°C to +85°C
Discharge Characteristics: High energy density and stable operating voltage over the discharge period
Shelf Life: 10+ years at room temperature (low self-discharge rate)
Terminals: Standard versions with or without tabs/leads depending on configuration (“R” indicates radial tabs for PCB mounting)
