Kinco, 10.1” 16:9 TFT display HMI (MT4532TE)

Kinco HMI , MT4532TE , 10.1” 16:9 TFT display

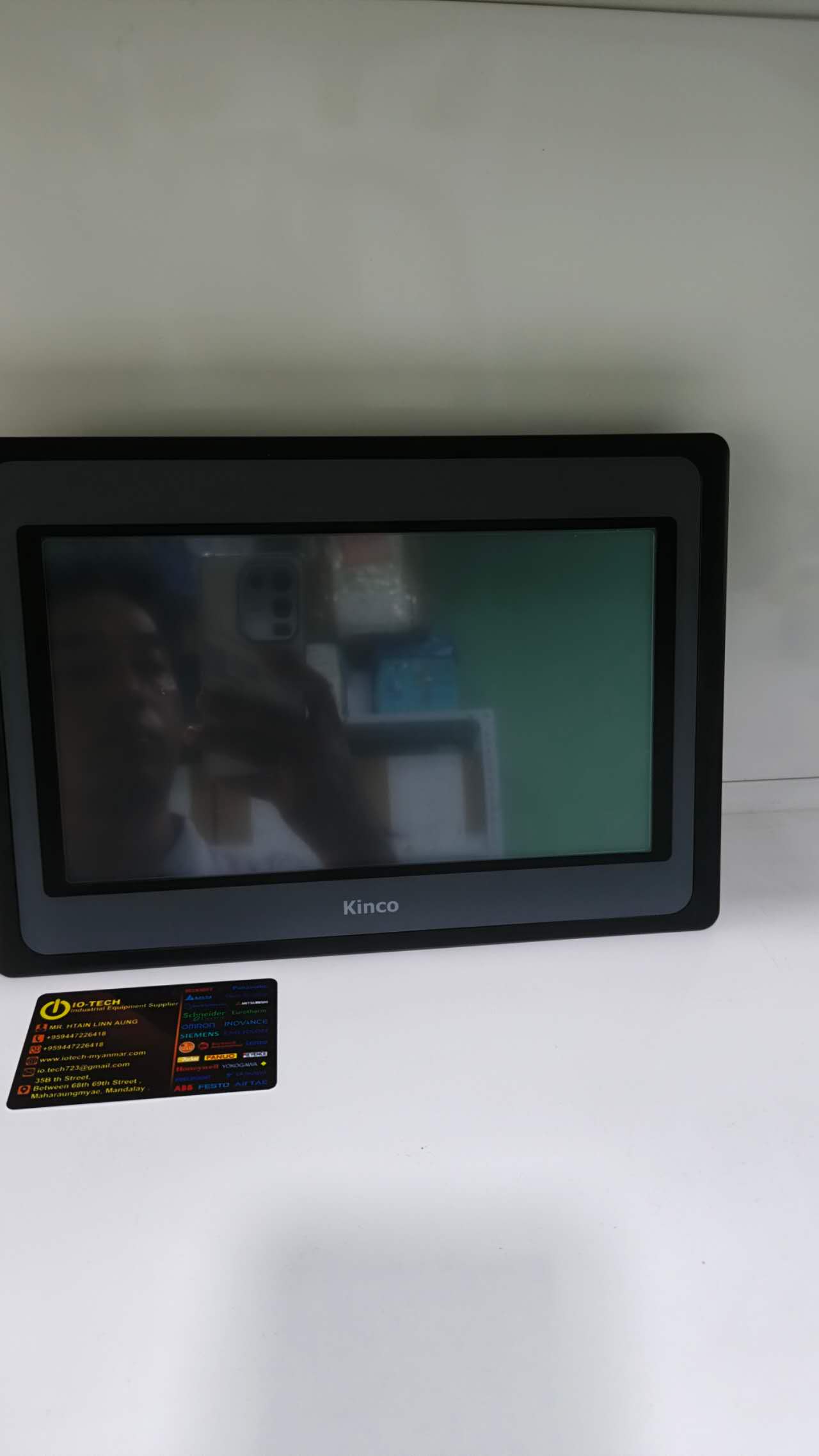

The MT4532TE is a 10.1-inch touch-screen operator interface from the Kinco MT4000 series. It is designed for industrial applications requiring a user interface to monitor & control machinery or processes. It supports multiple communications, has recipe storage, real-time clock, and is built to be used reliably in typical industrial environments.

Key Features:

• Display : 10.1″ (diagonal) 16:9 TFT LCD, with LED backlight

• Resolution : 1024 × 600 pixels

• Color Depth :  65,536 colors (i.e. 16-bit or “True Color”)

• Backlight  : BrightnessAround 200 cd/m²

• Backlight : LifeApprox. 50,000 hours

• Touch Panel : 4-wire resistive touch screen (precision resistive network)

• Processor : 32-bit RISC CPU running at 800 MHz

• Memory : 128 MB Flash + 64 MB SDRAM main memory

• Recipe / Data Memory : 512 KB reserved for recipe memory or record-data storage
• Real-Time Clock  : Built-in RTC, with about 2 years reserve time when powered off

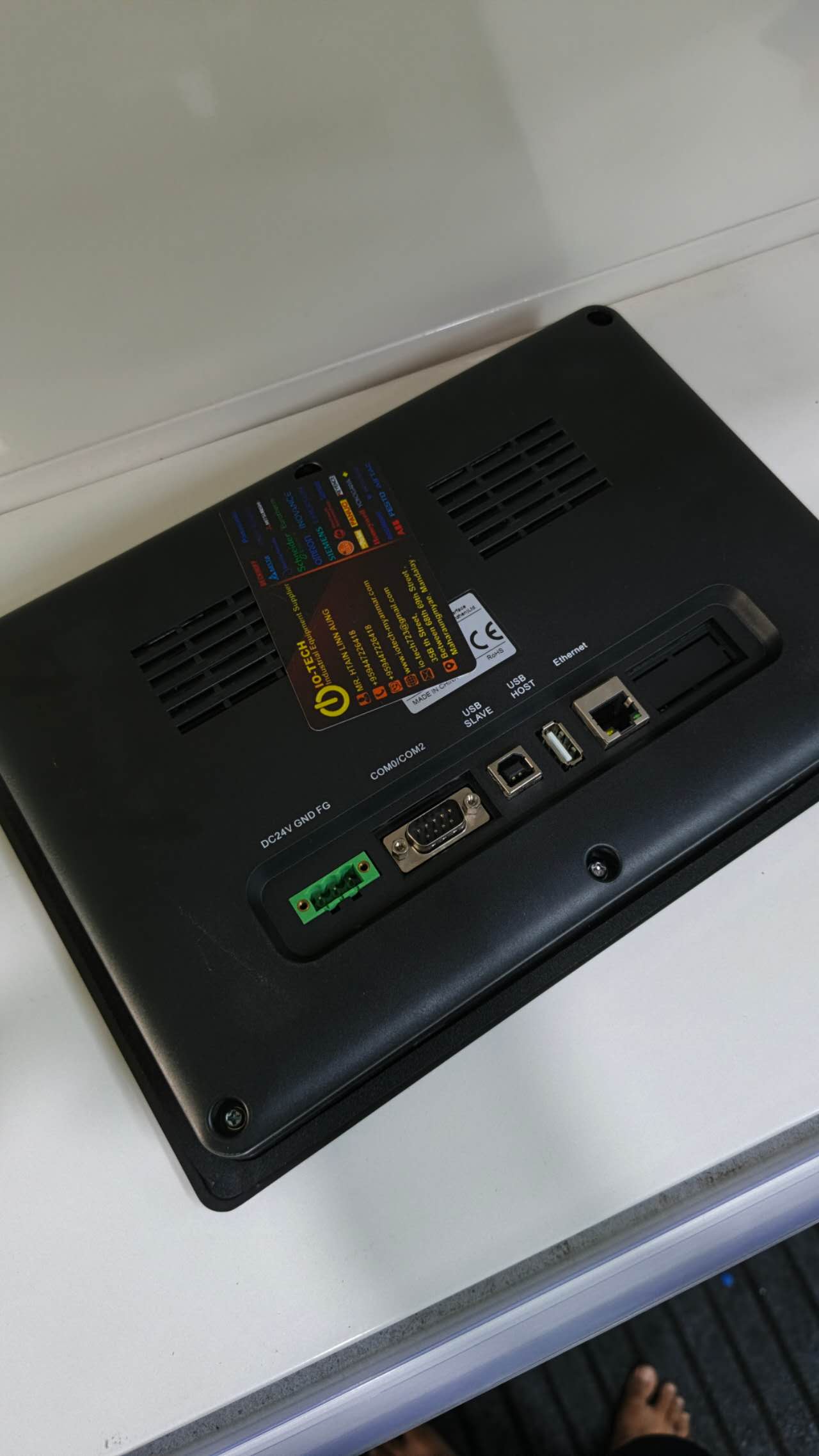

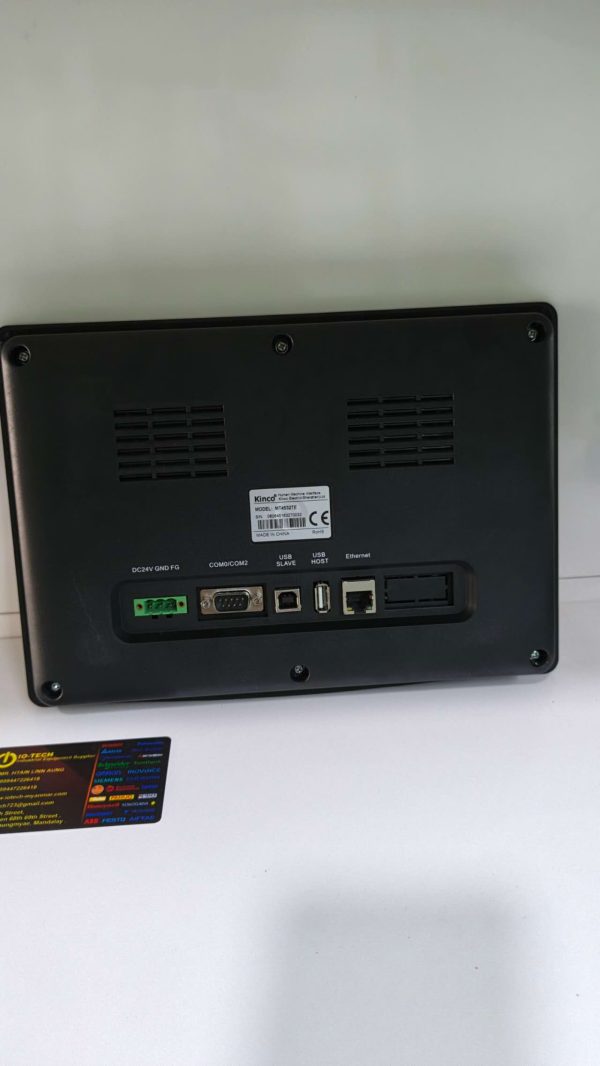

• Expandable Memory / Ports : USB Host port + SD card slot provided for expandable storage. Also USB slave, serial, Ethernet for communication & program upload

Communication Ports

• COM0 : RS-232 / RS-485 (2-wire) / RS-485 (4-wire) or RS-422 depending on configuration.
• COM1 : Similarly RS232 / RS485 (2/4 wire) configuration.
• COM2 : Dedicated RS-232 port.
• Ethernet : 10/100 Base-T, for network communications.
• USB ports : At least one USB Host, one USB Slave (for e.g. program upload).

Electrical Parameters

• Rated Voltage : 24 VDC nominal
• Input Voltage Range : 12 to 28 VDC
• Rated Power Consumption : ~ 5.3 W
• Power-down Tolerance : Power interruption allowed < 3 ms without losing data/configurations (or allowed “power down” specs)
• Insulation Resistance : > 50 MΩ at 500 VDC
• Dielectric Strength500 VAC for 1 minute
