DS 6P DIP Switch – 6-Position Slide Type

Product Description

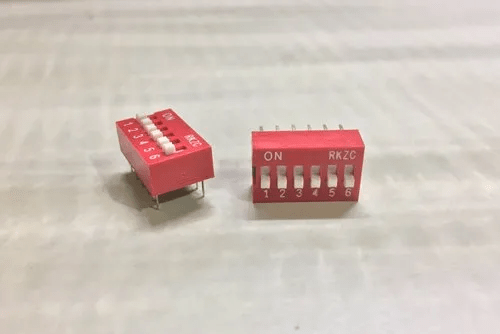

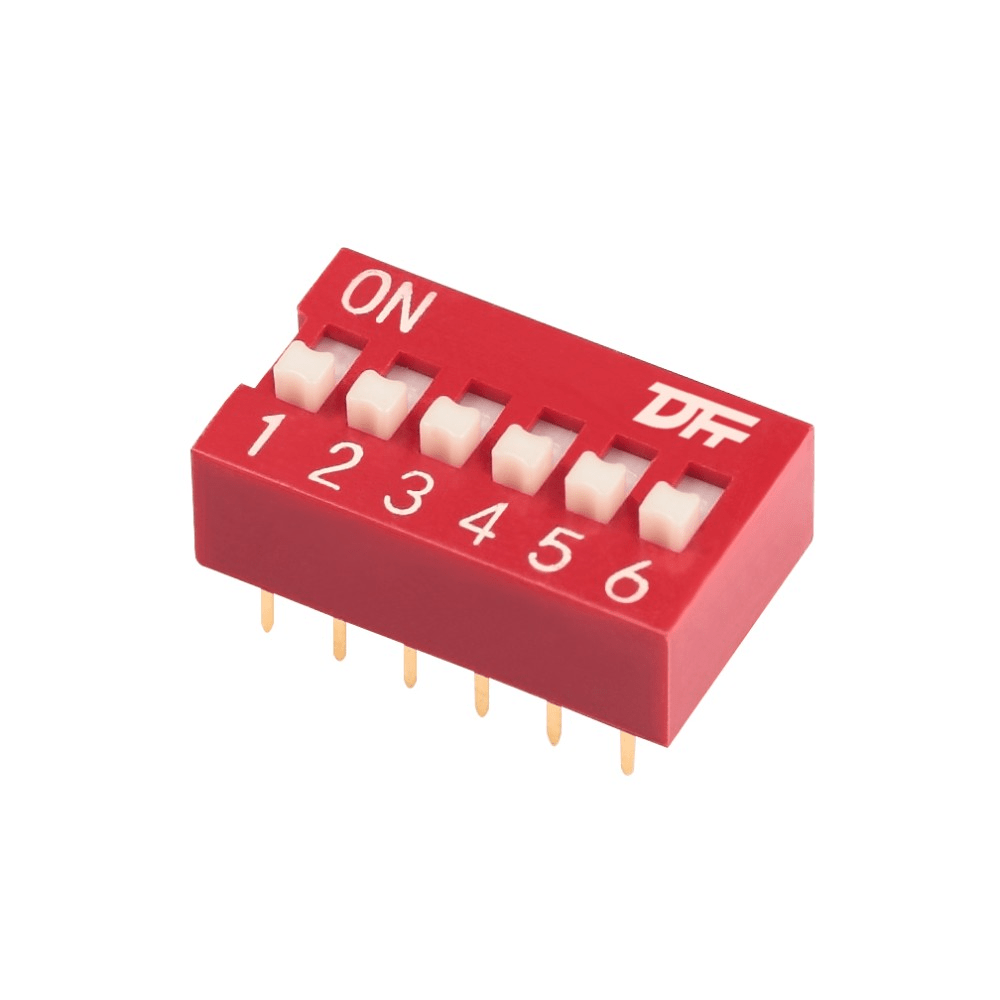

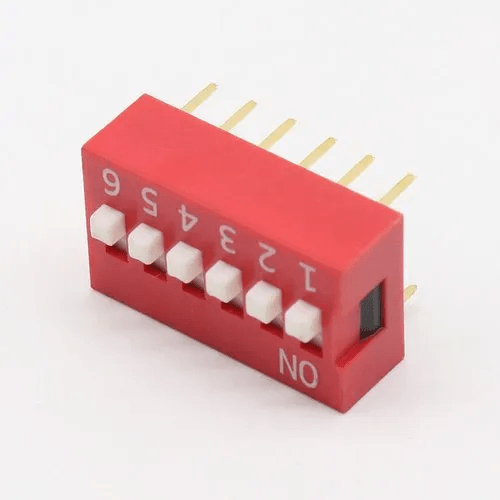

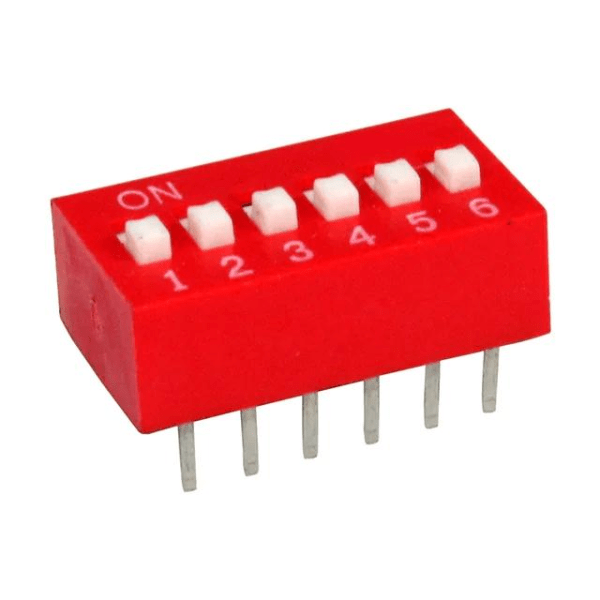

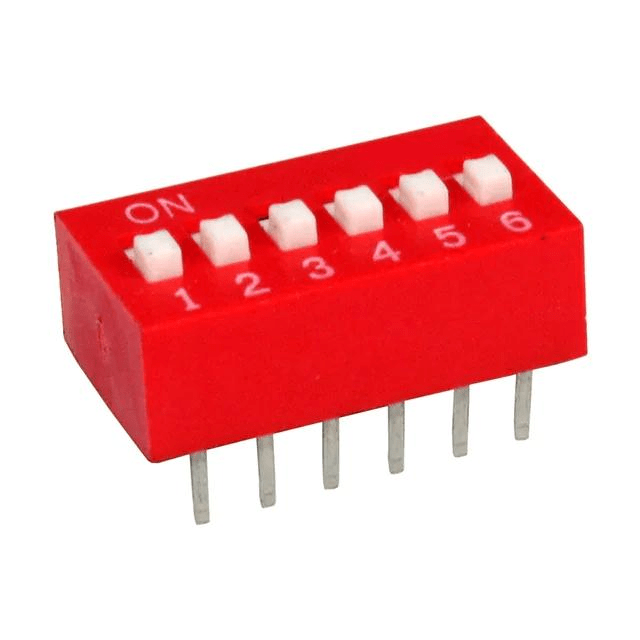

DS 6P DIP Switch – 6-Position Slide Type

The DS 6P DIP Switch offers precise manual configuration for a wide range of electronic circuits and devices. Designed with 6 individual toggle positions, this compact and reliable switch provides a simple solution for setting device parameters, addressing, or function selection in embedded systems and digital electronics.

Key Features:

• 6 Individual Positions – Each switch operates independently, allowing for up to 64 unique combinations.

• Compact DIP Format – Standard Dual In-Line Package (DIP) design for easy integration into PCBs and breadboards.

• Slide-Type Actuation – Smooth sliding mechanism ensures reliable toggling and tactile feedback.

• Long Operating Life – Rated for up to 2,000 cycles per switch, ensuring long-term reliability.

• Clearly Marked Numbers – Labeled positions for quick identification and accurate settings.

• RoHS Compliant – Environmentally friendly construction with lead-free materials.

Specifications:

• Positions: 6 (SPST per switch)

• Switching Type: Slide

• Contact Rating: [e.g., 25mA @ 24V DC]

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ

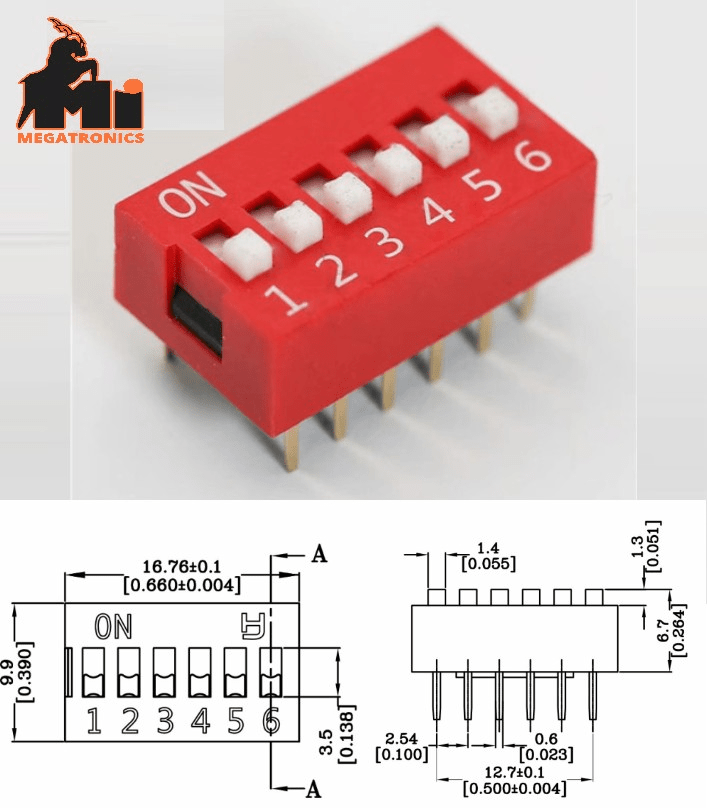

• Pitch: 2.54mm (0.1″)

• Operating Temperature: -40°C to +85°C

• Mounting: Through-hole (THT) or surface-mount (SMD) options available

Applications:
Perfect for microcontroller projects, address setting for communication protocols (e.g., I2C, SPI), mode selection in consumer electronics, and test/debug configurations in development boards
